Based on customer feedback, both analog input wires on the wiring harness are now delivered unconnected. The eFlexPro2 3D fuel map can be tuned directly using pulse length.
If analog inputs are required — for example, for reading a wideband lambda gauge or MAP/TPS/MAF sensors for the load axis or fuel map 2 — the wires can easily be added by following the instructions.

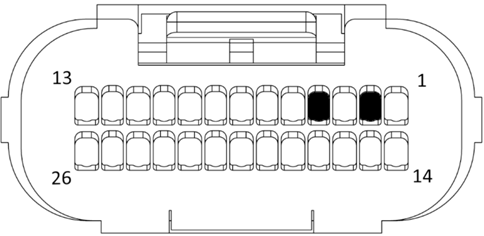

Pin locations
Analog input 1 = Pin 2
Analog input 2 = Pin 4

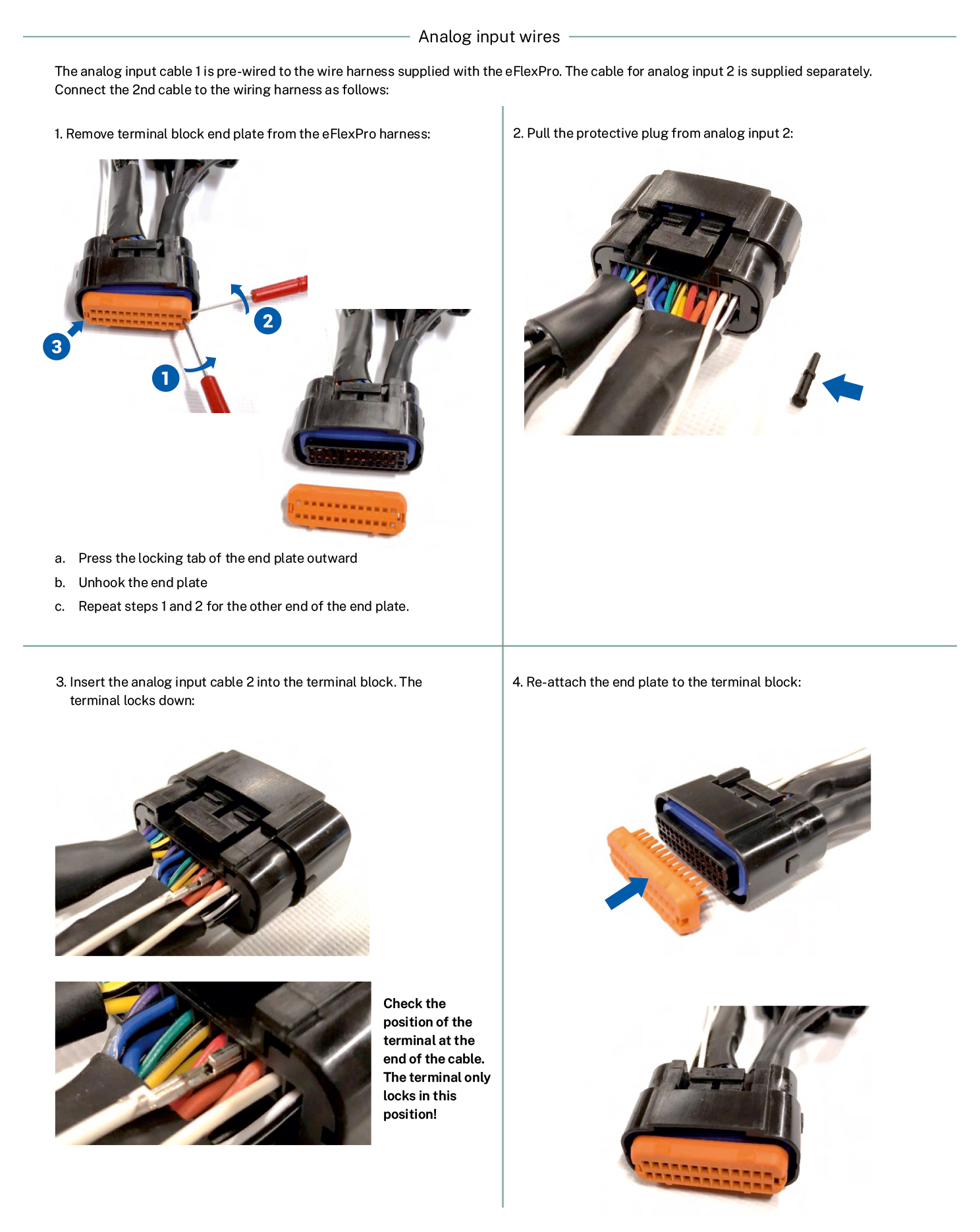

Steps
- Remove dummy pin from wire cavity
- Remove orange front cap
- Push wire in the cavity until the terminal locks in place
- Snap the front cap back on. If it feels tight, check that the terminal is fully pushed in and securely locked

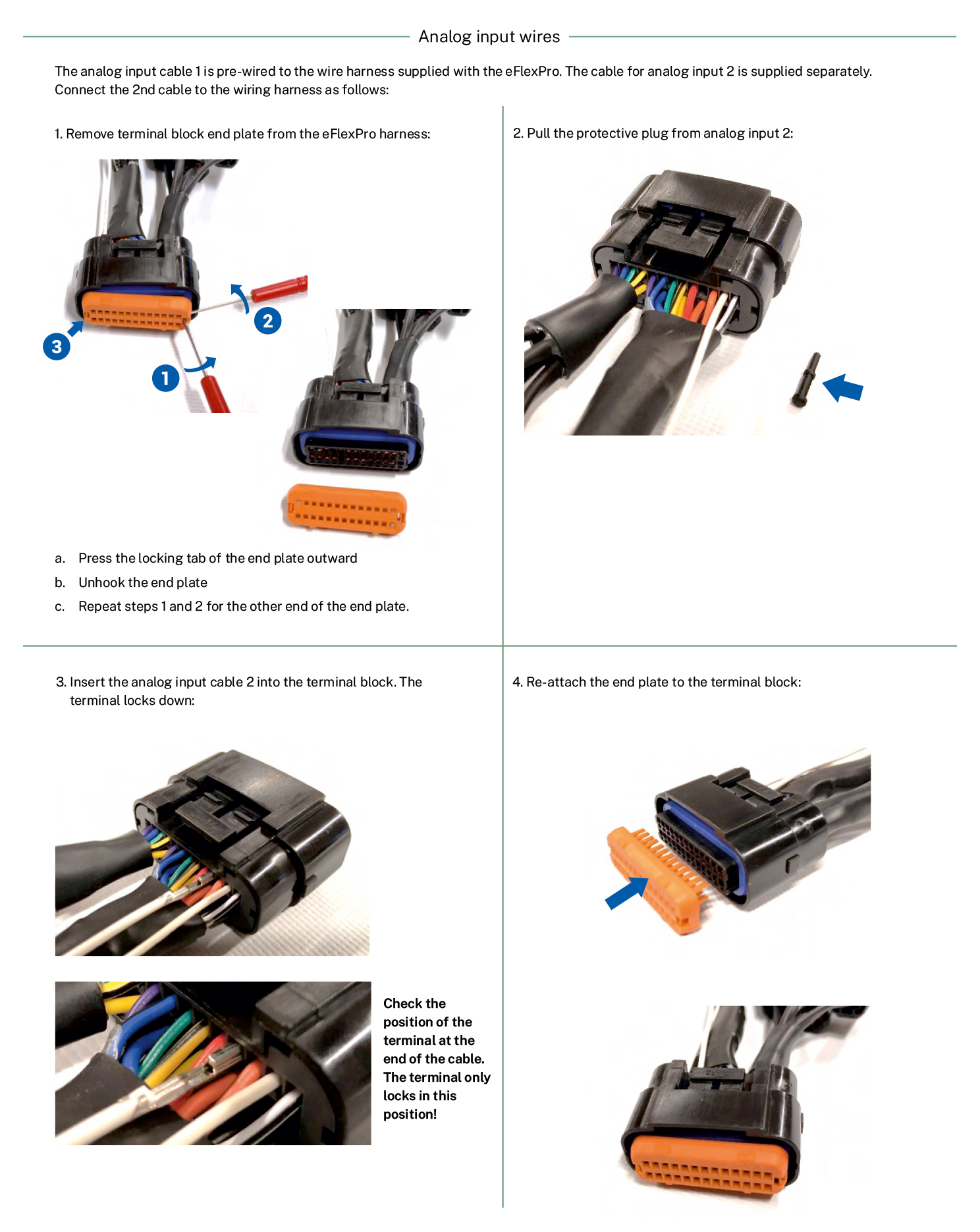

These instructions can also be found on pages 46-47 of the eFlexPro2 User Guide: eFlexPro2 User Guide (pdf)
(Click below to enlarge)
